Part 1第一部分

Wall-Mounted Lithium Battery Series 壁挂式锂电池系列

Space-saving wall-mounted LiFePO4 batteries for residential energy storage. Grade A cells, 6000+ cycles, integrated BMS, and CAN/RS485 communication. Available in 51.2V, 48V, and 25.6V platforms. 壁挂式磷酸铁锂电池，节省空间，适用于家用储能。A级电芯，6000+次循环，集成BMS，支持CAN/RS485通讯。提供51.2V、48V和25.6V平台。

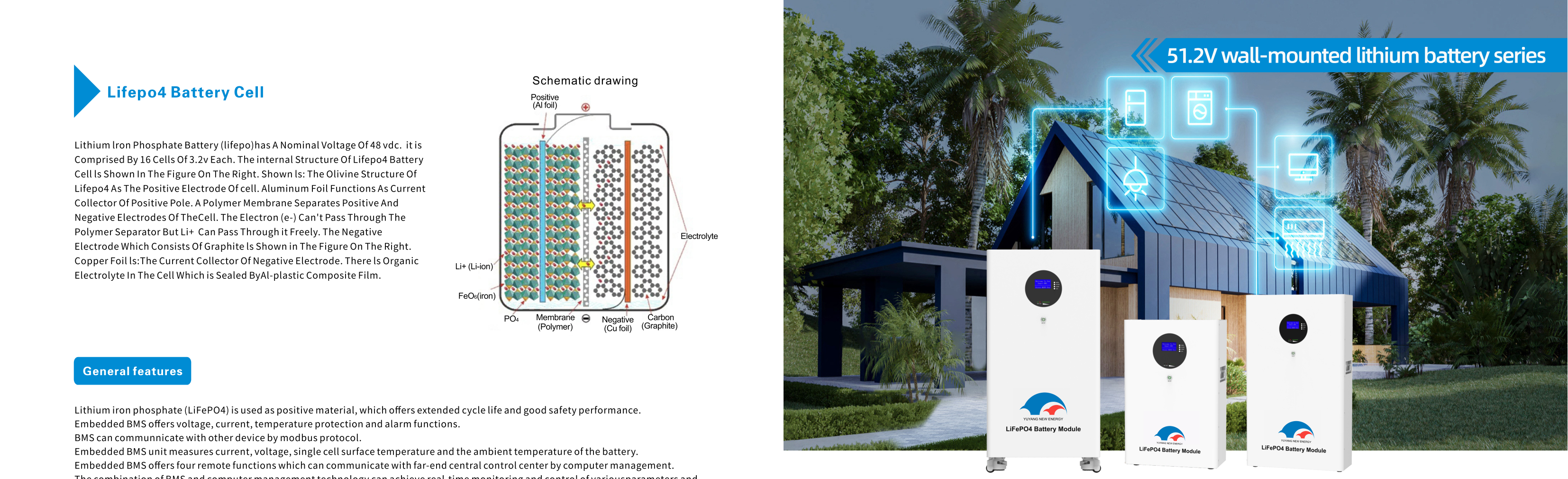

51.2V Wall-Mounted Series51.2V 壁挂式系列

5.12 kWh ~ 16.384 kWh, up to 15 units in parallel5.12 kWh ~ 16.384 kWh，最多15台并联

Wall-Mounted 51.2V

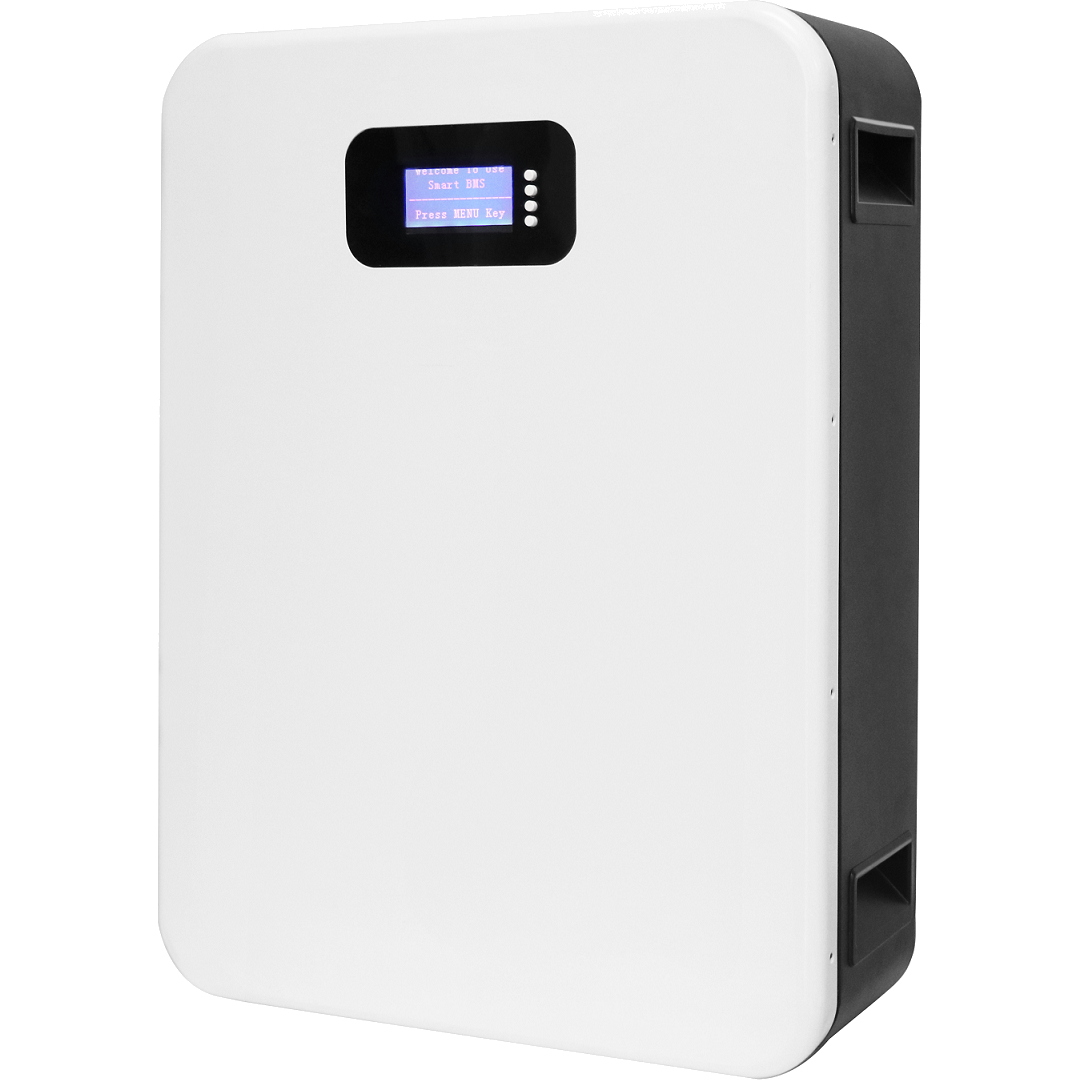

51.2V Wall-Mounted LiFePO4 Battery — YY51100LW ~ YY51320LW

Low-profile wall-mounted design, ideal for compact homes. 6,000 cycles at 80% DOD with 5-year warranty. Grade A cells with smart BMS for over-voltage, over-current, and temperature protection. 超薄壁挂式设计，适合紧凑型住宅。80% DOD下6000次循环，5年质保。A级电芯，智能BMS提供过压、过流和温度保护。

6000 cycles @80% DOD, 10-year design life6000次循环@80% DOD，10年设计寿命
Up to 15 units in parallel for capacity expansion最多15台并联扩容
CAN/RS485/RS232 communicationCAN/RS485/RS232通讯
Compatible with Goodwe, Victron, Deye, Growatt, Solis, and more兼容固德威、Victron、德业、古瑞瓦特、Solis等逆变器
Certifications: CE, UN38.3, MSDS认证：CE、UN38.3、MSDS

Model	Energy (kWh)	Capacity (Ah)	Nominal Voltage	Max Charge/Discharge	Dimensions (mm)	Weight (kg)
YY51100LW	5.12	100	51.2V	100A	570×410×160	45.2
YY51200LW	10.24	200	51.2V	200A	830×500×160	91.6
YY51280LW	14.336	280	51.2V	200A	830×500×250	122
YY51300LW	15.36	300	51.2V	200A	830×500×250	125
YY51320LW	16.384	320	51.2V	200A	860×500×250	132

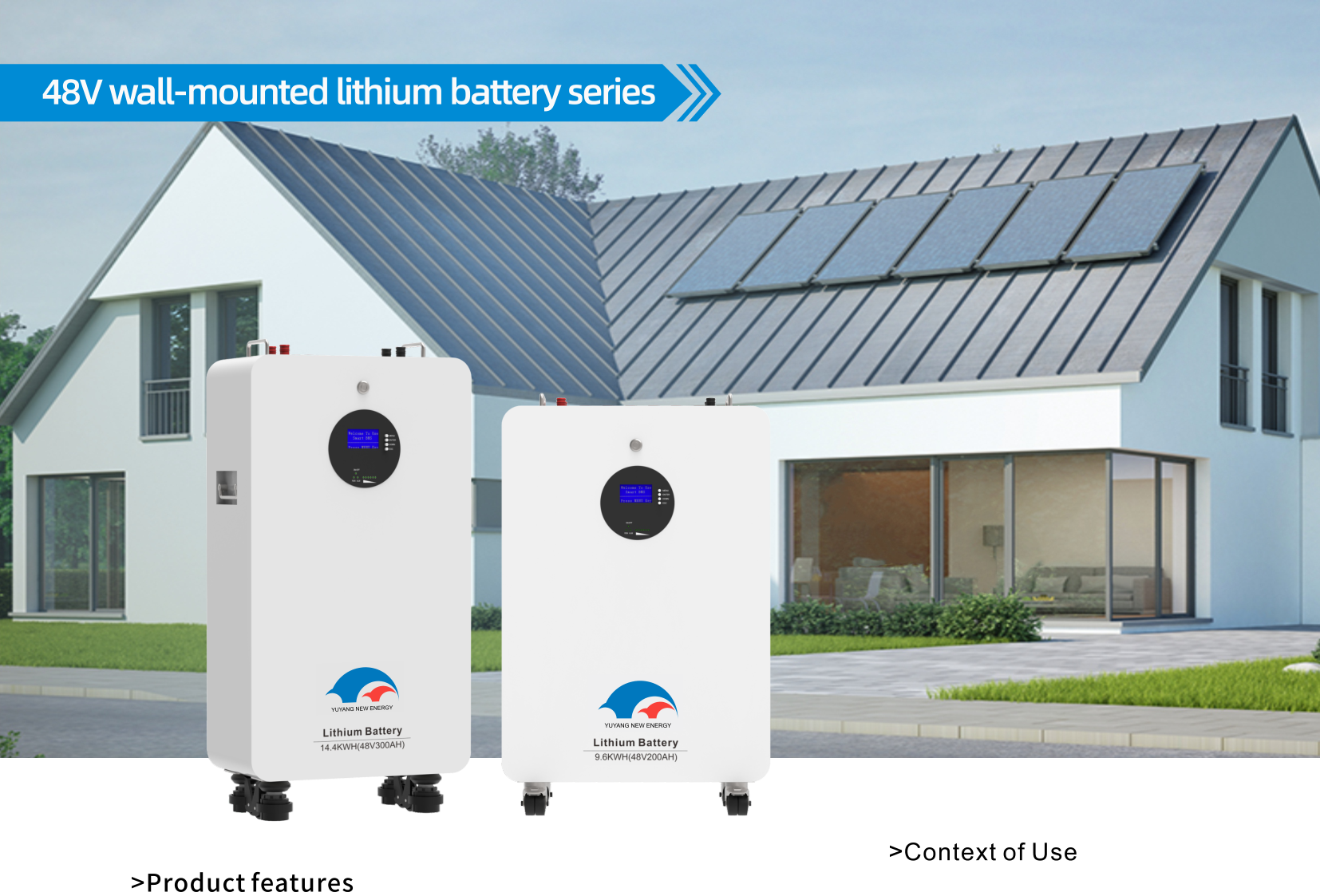

48V Wall-Mounted Series48V 壁挂式系列

4.8 kWh ~ 15.36 kWh, up to 15 units in parallel4.8 kWh ~ 15.36 kWh，最多15台并联

Wall-Mounted 48V

48V Wall-Mounted LiFePO4 Battery — YY48100LW ~ YY48320LW

48V nominal wall-mounted battery with 15-unit parallel scalability. Equipped with smart BMS, Modbus communication, and multi-level safety protection. 48V标称壁挂式电池，最多15台并联扩展。配备智能BMS、Modbus通讯和多级安全保护。

Model	Energy (kWh)	Capacity (Ah)	Nominal Voltage	Max Charge/Discharge	Dimensions (mm)	Weight (kg)
YY48100LW	4.8	100	48V	100A	570×410×160	42.2
YY48200LW	9.6	200	48V	200A	830×500×160	87.6
YY48280LW	13.44	280	48V	200A	830×500×250	117
YY48300LW	14.4	300	48V	200A	830×500×250	120
YY48320LW	15.36	320	48V	200A	860×500×250	126

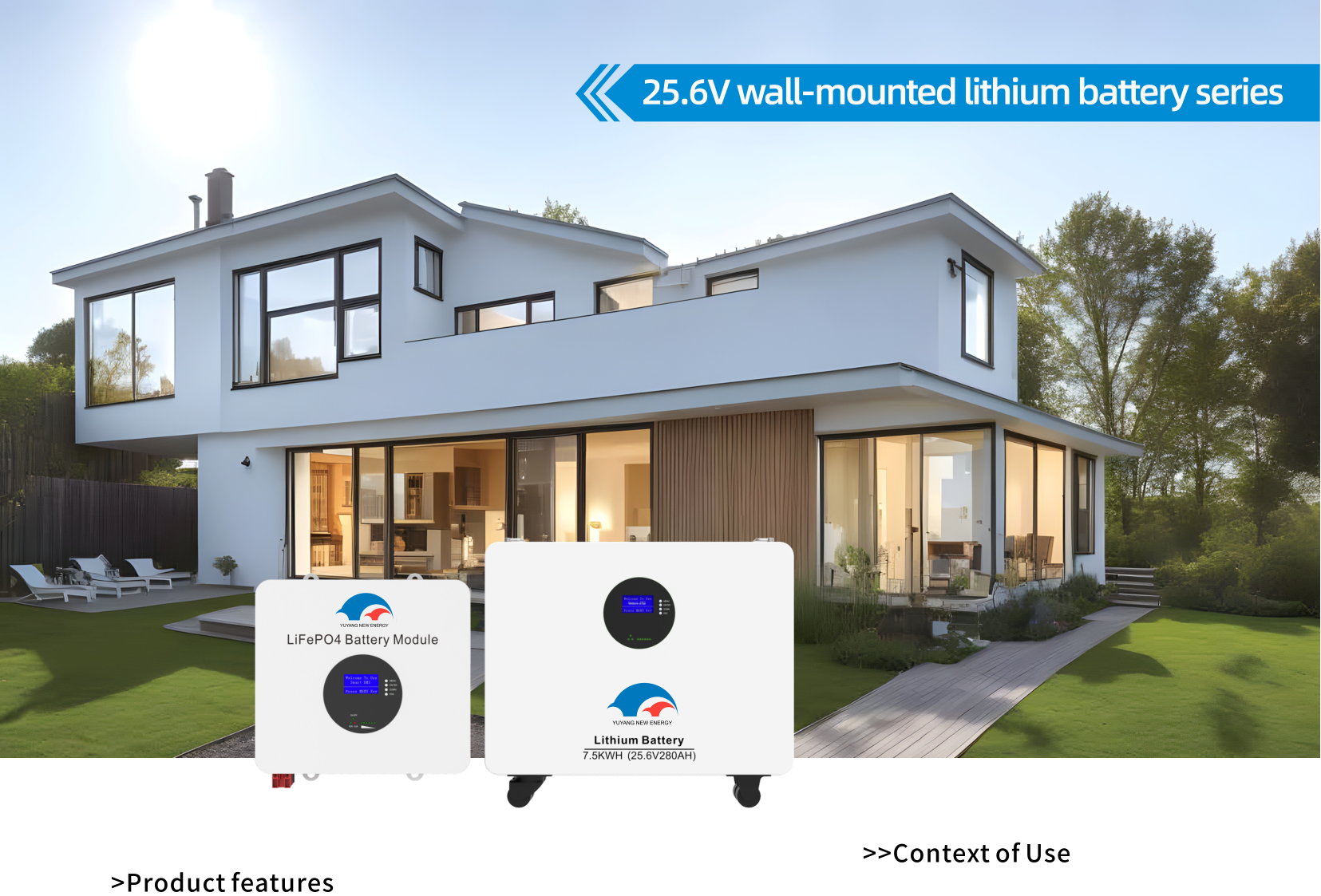

25.6V Wall-Mounted Series25.6V 壁挂式系列

2.56 kWh ~ 8.192 kWh, compact form factor2.56 kWh ~ 8.192 kWh，紧凑型设计

Wall-Mounted 25.6V

25.6V Wall-Mounted LiFePO4 Battery — YY25100LW ~ YY25320LW

Compact low-voltage wall-mounted battery for smaller residential setups. Same Grade A cells and comprehensive BMS protection as the higher voltage variants. 紧凑型低压壁挂式电池，适用于小型住宅。采用与高压型号相同的A级电芯和全面BMS保护。

Model	Energy (kWh)	Capacity (Ah)	Nominal Voltage	Max Charge/Discharge	Dimensions (mm)	Weight (kg)
YY25100LW	2.56	100	25.6V	100A	410×370×155	25.3
YY25200LW	5.12	200	25.6V	200A	700×420×170	51.9
YY25280LW	7.168	280	25.6V	200A	560×400×248	69.8
YY25300LW	7.68	300	25.6V	200A	560×400×248	70.5
YY25320LW	8.192	320	25.6V	200A	670×450×220	75.5

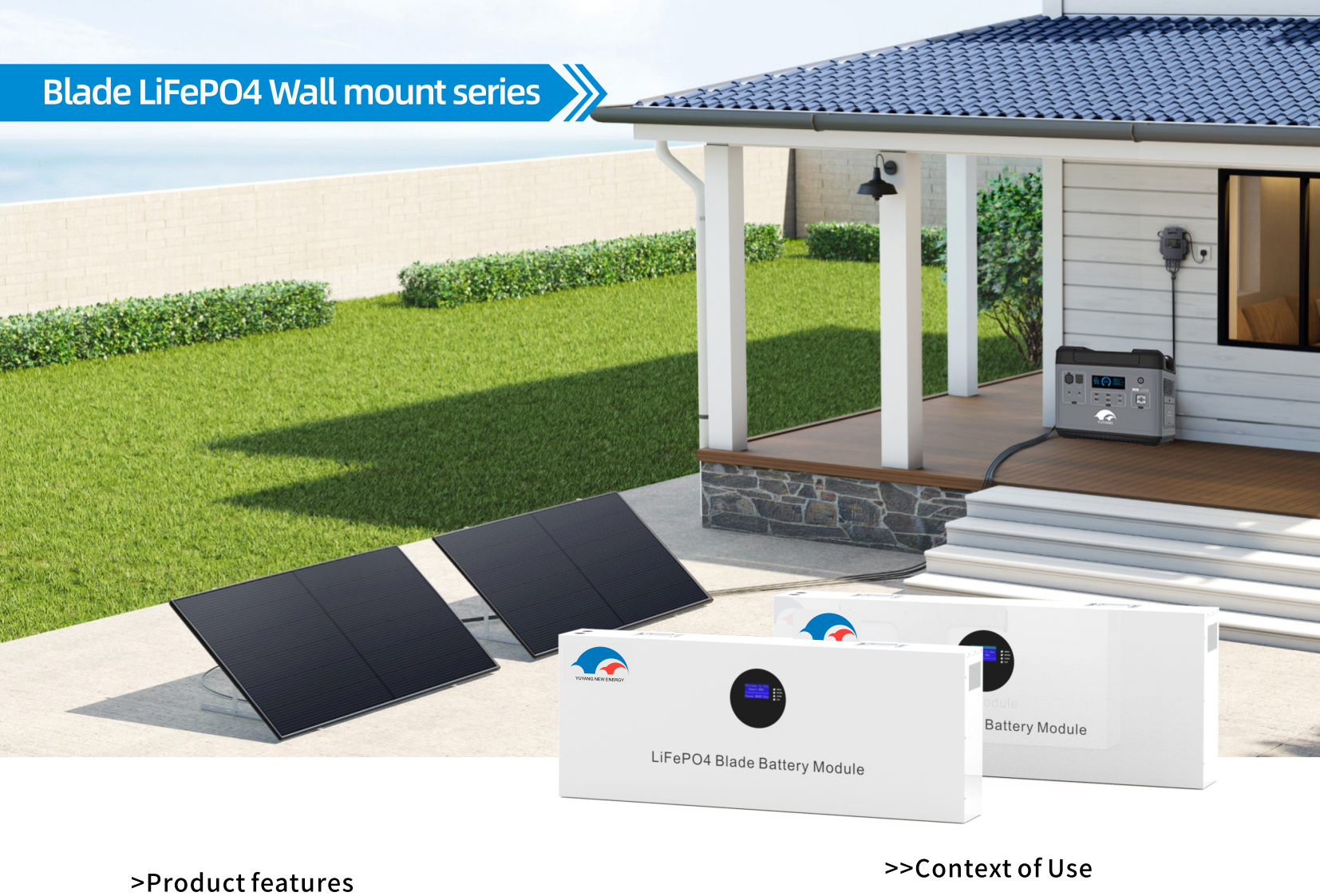

Blade LiFePO4 Wall Mount Series刀片电池壁挂式系列

Ultra-slim blade-cell design, 7.065 ~ 14.131 kWh超薄刀片电芯设计，7.065 ~ 14.131 kWh

Blade Cell Technology

Blade LiFePO4 Wall Mount Battery — YY51138BW / YY51276BW

Next-generation blade cell technology with improved energy density and safety. Slim profile ideal for space-constrained installations. High discharge rate up to 150A~200A. 新一代刀片电池技术，能量密度更高，安全性更强。超薄外形，适合空间受限的安装场景。高放电率可达150A~200A。

Blade LiFePO4 technology for enhanced safety刀片磷酸铁锂技术，安全性更强
High discharge current: up to 200A高放电电流：最高200A
Up to 15 units in parallel最多15台并联

Model	Energy (kWh)	Capacity (Ah)	Nominal Voltage	Max Charge/Discharge	Dimensions (mm)	Weight (kg)
YY51138BW	7.065	138	51.2V	150A	1125×340×170	75
YY51276BW	14.131	276	51.2V	200A	1125×500×170	135

Part 2第二部分

Floor Standing / Tower Lithium Battery Series 落地式/塔式锂电池系列

Freestanding tower batteries with low center of gravity for stable floor placement. Plug-and-play installation, scalable parallel connection, and weather-resistant enclosures. 独立式塔式电池，低重心设计，稳定落地放置。即插即用安装，可并联扩展，外壳耐候性强。

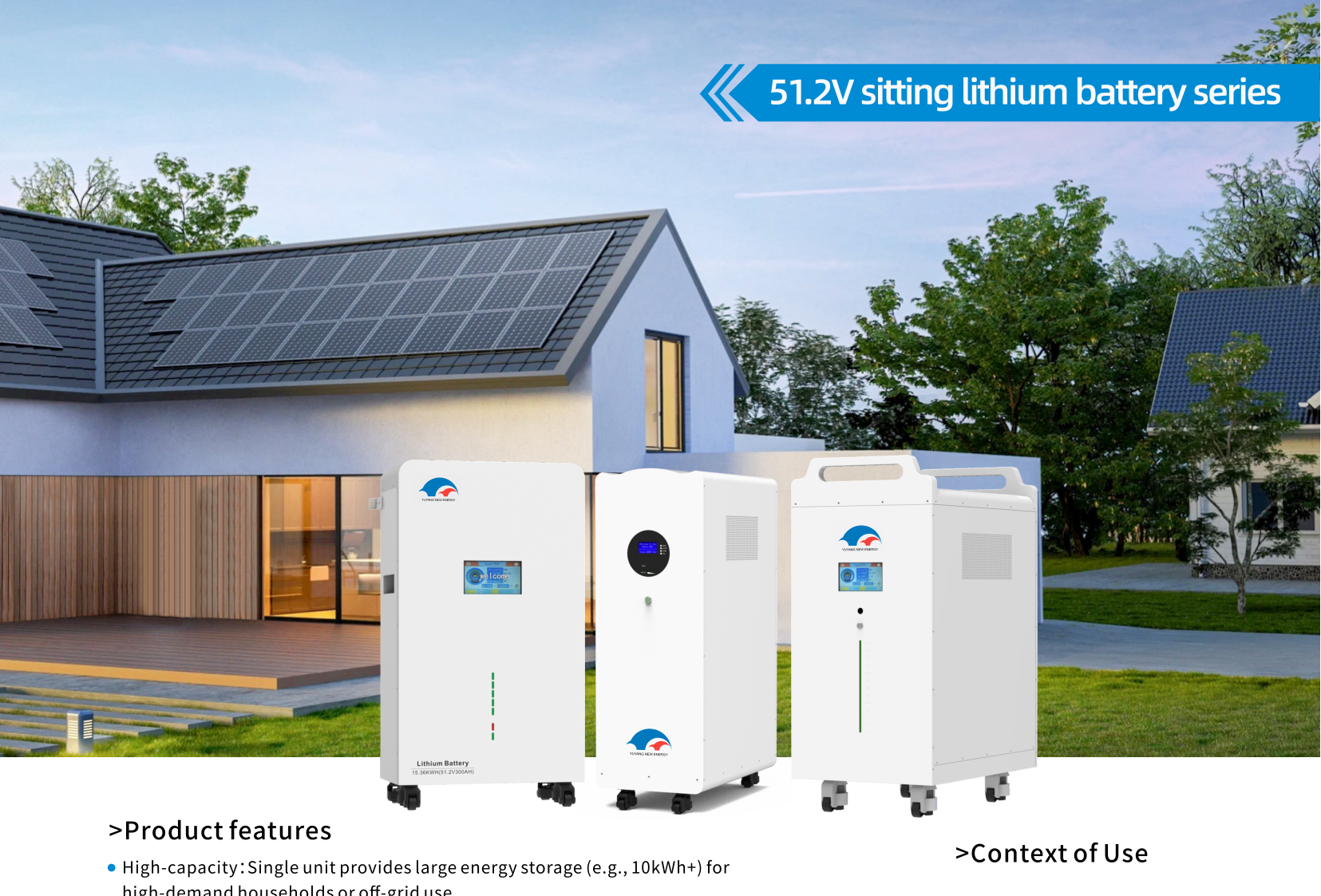

51.2V Sitting Lithium Battery Series51.2V 座地式锂电池系列

14.336 ~ 32.153 kWh, large single-unit capacity14.336 ~ 32.153 kWh，单机大容量

Floor Standing

51.2V Sitting LiFePO4 Battery — YY51280FS ~ YY51628FS

Large single-unit capacity for high-demand households or off-grid use. Low-center-of-gravity design with anti-tip features. Some models include wheels for mobility. Weather-resistant with wide operating temperature range. 单机大容量，适用于高需求家庭或离网使用。低重心防倾倒设计，部分型号带脚轮便于移动。耐候性强，工作温度范围宽。

Model	Energy (kWh)	Capacity (Ah)	Nominal Voltage	Max Charge/Discharge	Dimensions (mm)	Weight (kg)
YY51280FS	14.336	280	51.2V	200A	790×520×265	131.6
YY51300FS	15.36	300	51.2V	200A	840×500×250	137.8
YY51320FS	16.384	320	51.2V	200A	682×385×912	151.5
YY51460FS	23.55	460	51.2V	200A	385×682×1030	213.5
YY51628FS	32.153	628	51.2V	300A	750×498×999	276

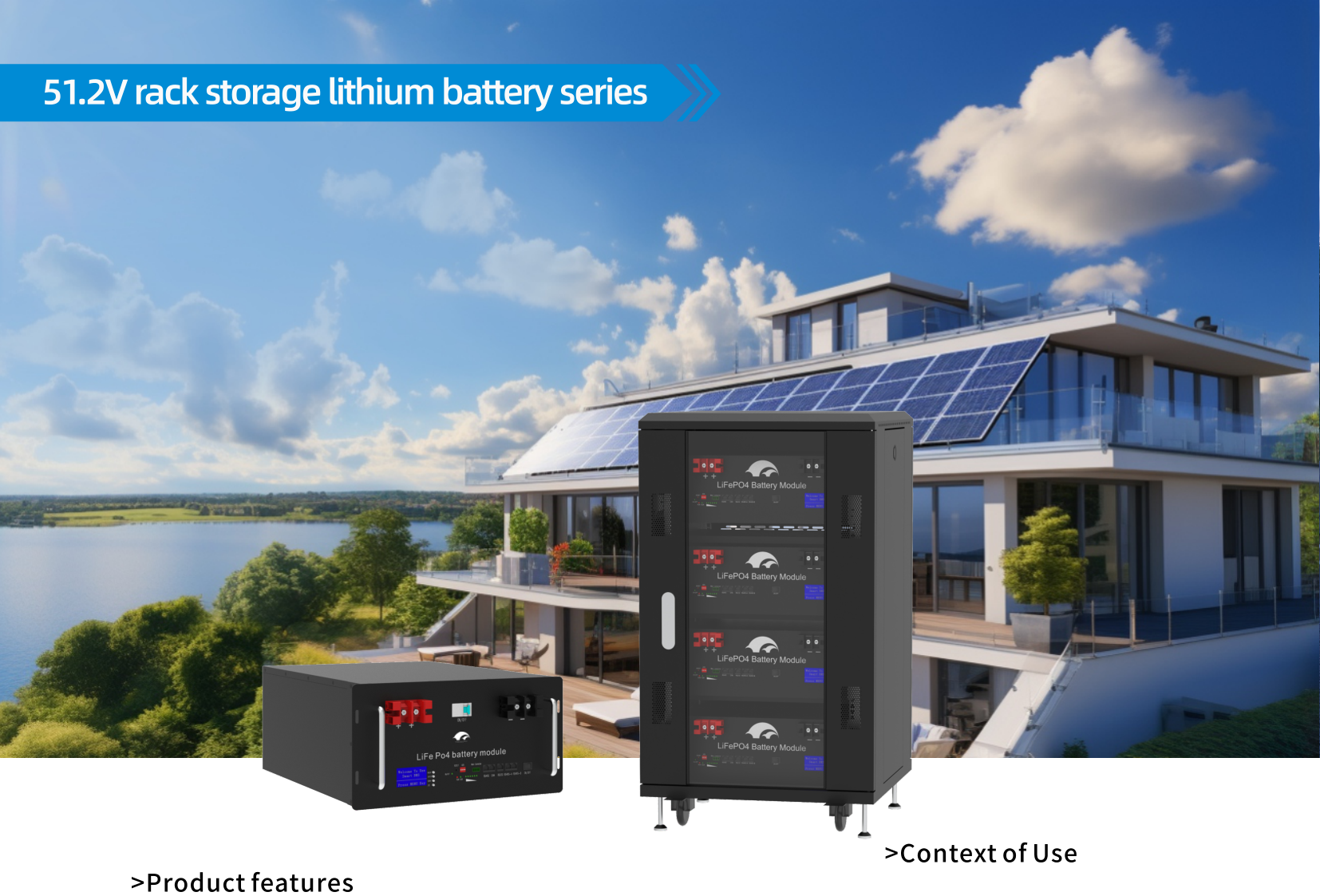

51.2V Standing Tower Series51.2V 立式塔系列

5.12 ~ 16.384 kWh, standalone tower design5.12 ~ 16.384 kWh，独立塔式设计

Tower Standing

51.2V Standing Tower LiFePO4 — YY51100LR ~ YY51320LR

Sturdy tower design with low center of gravity, anti-toppling stability. Plug-and-play — no installation required. Large single capacity for high consumption. 坚固塔式设计，低重心防倾倒。即插即用，无需安装。单机大容量满足高功耗需求。

Model	Energy (kWh)	Capacity (Ah)	Nominal Voltage	Max Charge/Discharge	Dimensions (mm)	Weight (kg)
YY51100LR	5.12	100	51.2V	100A	470×450×177	44
YY51200LR	10.24	200	51.2V	200A	560×482×245	88.1
YY51280LR	14.336	280	51.2V	200A	750×440×245	114
YY51300LR	15.36	300	51.2V	200A	750×440×245	118
YY51320LR	16.384	320	51.2V	200A	830×500×250	125

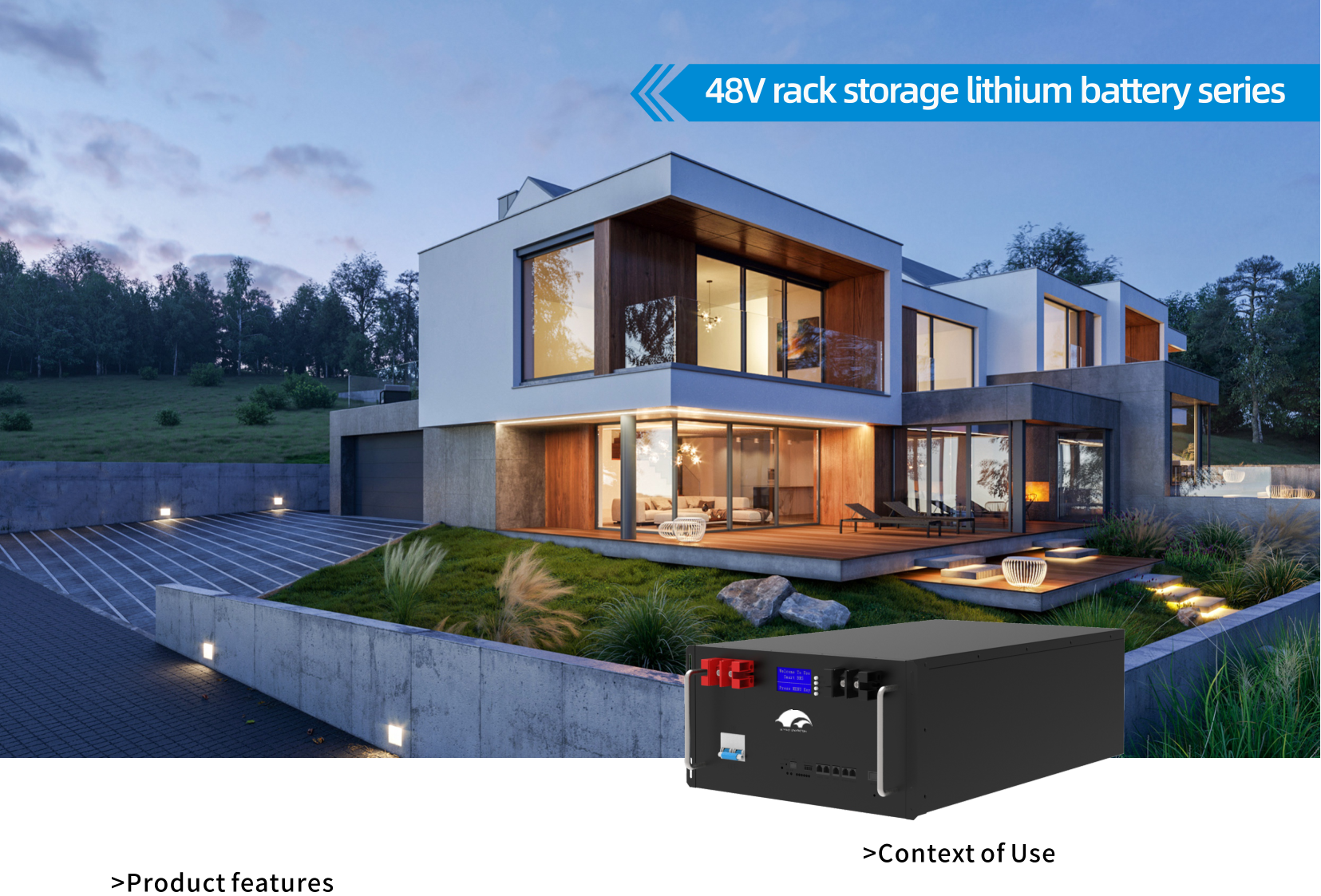

48V Standing Tower Series48V 立式塔系列

4.8 ~ 15.36 kWh, standalone tower design4.8 ~ 15.36 kWh，独立塔式设计

Tower Standing

48V Standing Tower LiFePO4 — YY48100LR ~ YY48320LR

48V nominal tower battery with the same robust design. Suitable for residential and small commercial applications requiring reliable floor-standing storage. 48V标称塔式电池，同样坚固耐用。适用于住宅及小型商业场所的可靠落地式储能需求。

Model	Energy (kWh)	Capacity (Ah)	Nominal Voltage	Max Charge/Discharge	Dimensions (mm)	Weight (kg)
YY48100LR	4.8	100	48V	100A	470×450×177	41.5
YY48200LR	9.6	200	48V	200A	560×482×245	84.9
YY48280LR	13.44	280	48V	200A	750×440×245	109
YY48300LR	14.6	300	48V	200A	750×440×245	112
YY48320LR	15.36	320	48V	200A	830×500×250	118

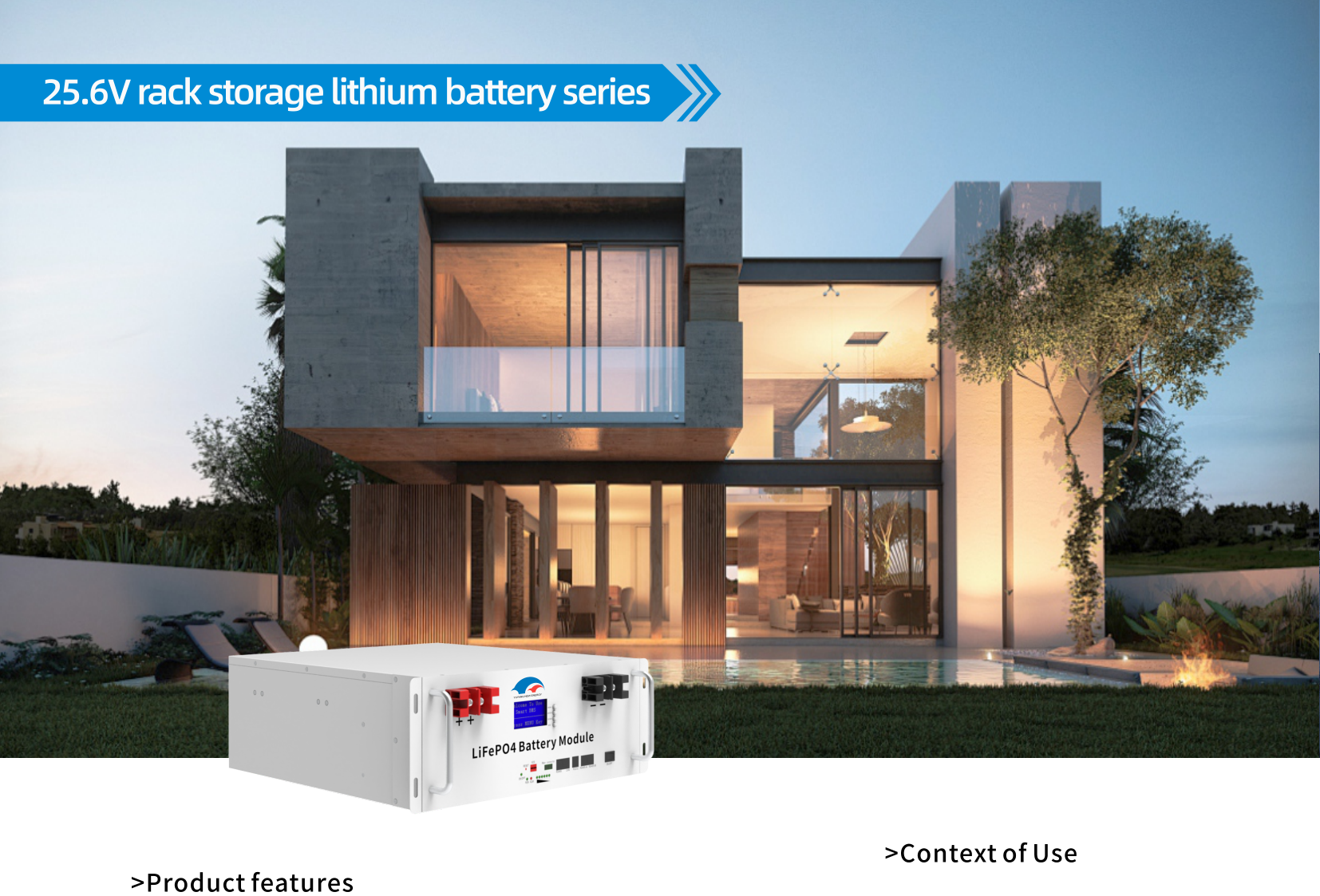

25.6V Standing Tower Series25.6V 立式塔系列

2.56 ~ 8.192 kWh, compact tower design2.56 ~ 8.192 kWh，紧凑塔式设计

Tower Standing

25.6V Standing Tower LiFePO4 — YY25100LR ~ YY25320LR

Compact low-voltage tower with the same sturdy design, anti-toppling features, and plug-and-play convenience as the larger models. 紧凑型低压塔式电池，与大型号同样坚固防倾倒，即插即用。

Model	Energy (kWh)	Capacity (Ah)	Nominal Voltage	Max Charge/Discharge	Dimensions (mm)	Weight (kg)
YY25100LR	2.56	100	25.6V	100A	545×530×215	32.2
YY25200LR	5.12	200	25.6V	200A	595×440×176	65.4
YY25280LR	7.168	280	25.6V	200A	460×440×243	91.3
YY25300LR	7.68	300	25.6V	200A	460×440×243	95.6
YY25320LR	8.192	320	25.6V	200A	460×440×243	104.5

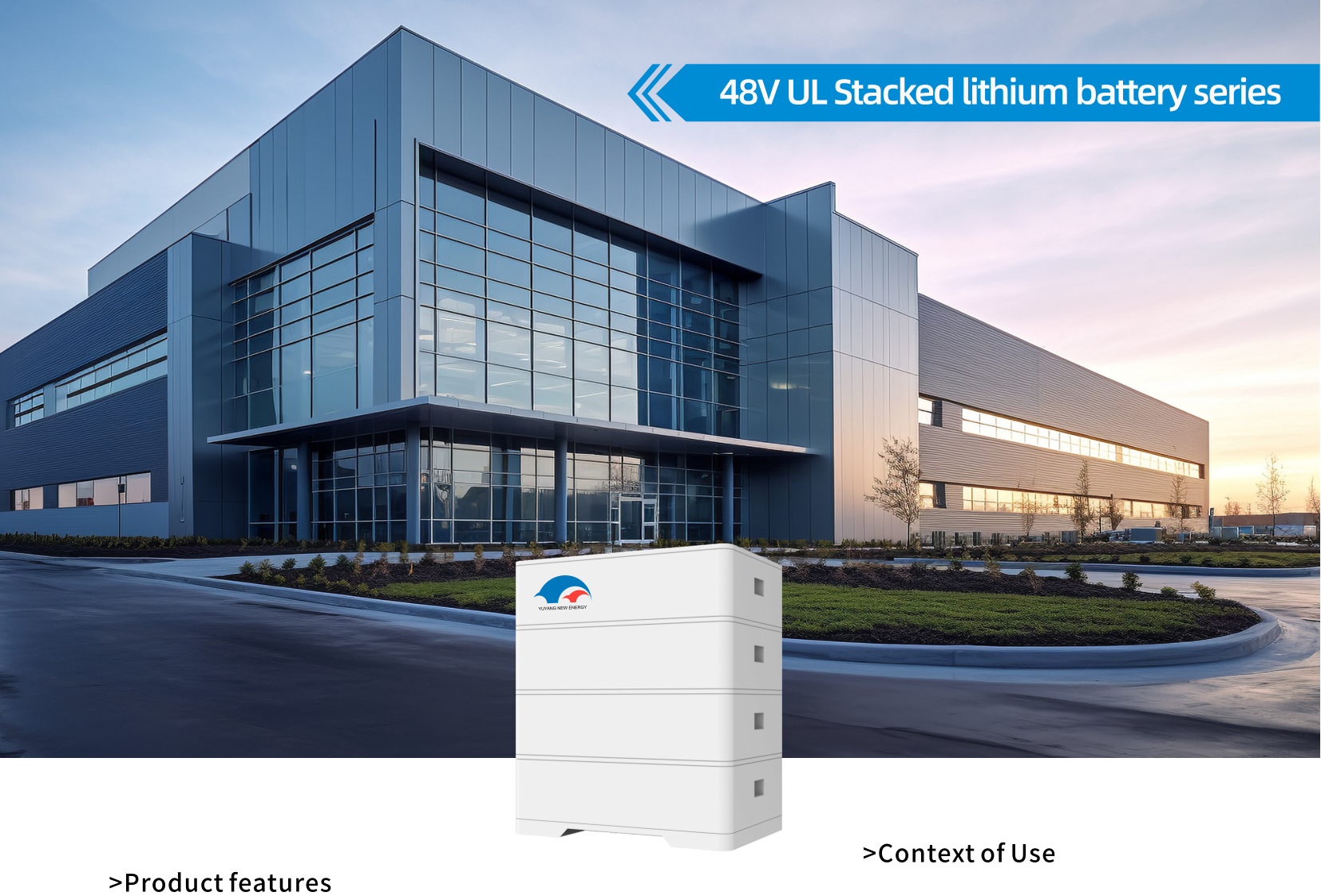

48V UL Stackable Series48V UL 可堆叠系列

4.8 ~ 38.4 kWh, modular vertical stacking4.8 ~ 38.4 kWh，模块化垂直堆叠

UL Stackable

48V UL Stackable LiFePO4 — YY48100UL ~ YY48800UL

Modular vertical stacking design for scalable capacity. High energy density in a compact footprint. Cost-effective upgrade path — expand without replacing the main unit. UL certified. 模块化垂直堆叠设计，容量可扩展。紧凑体积，高能量密度。经济高效的升级路径——无需更换主机即可扩展。UL认证。

Model	Energy (kWh)	Configuration	Nominal Voltage	Max Charge/Discharge	Dimensions (mm)	Weight (kg)
YY48100UL	4.8	100Ah×1	48V	120A	620×460×206	52
YY48200UL	9.6	100Ah×2	48V	200A	620×460×412	104
YY48400UL	19.2	100Ah×4	48V	400A	620×460×824	208
YY48800UL	38.4	100Ah×8	48V	400A	620×460×1648	416

Part 3第三部分

All-in-One & Hybrid Energy Storage Systems 一体式及混合储能系统

Integrated inverter + battery systems with MPPT solar charging. 2-in-1 design reduces cabling, saves space, and simplifies installation. Smart BMS with WiFi remote monitoring. 逆变器电池一体化系统，支持MPPT光伏充电。二合一设计减少布线，节省空间，简化安装。智能BMS支持WiFi远程监控。

All-in-One ESS

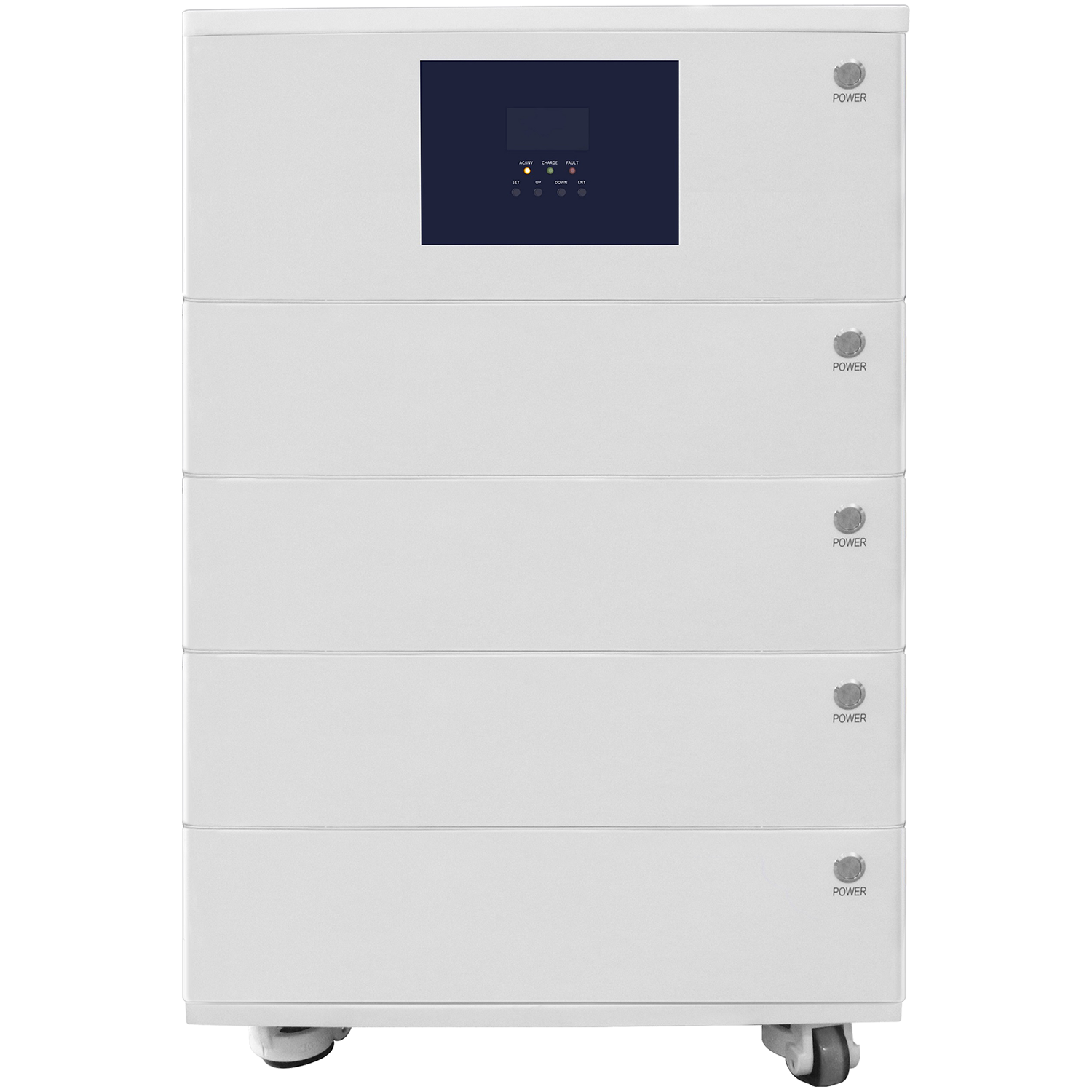

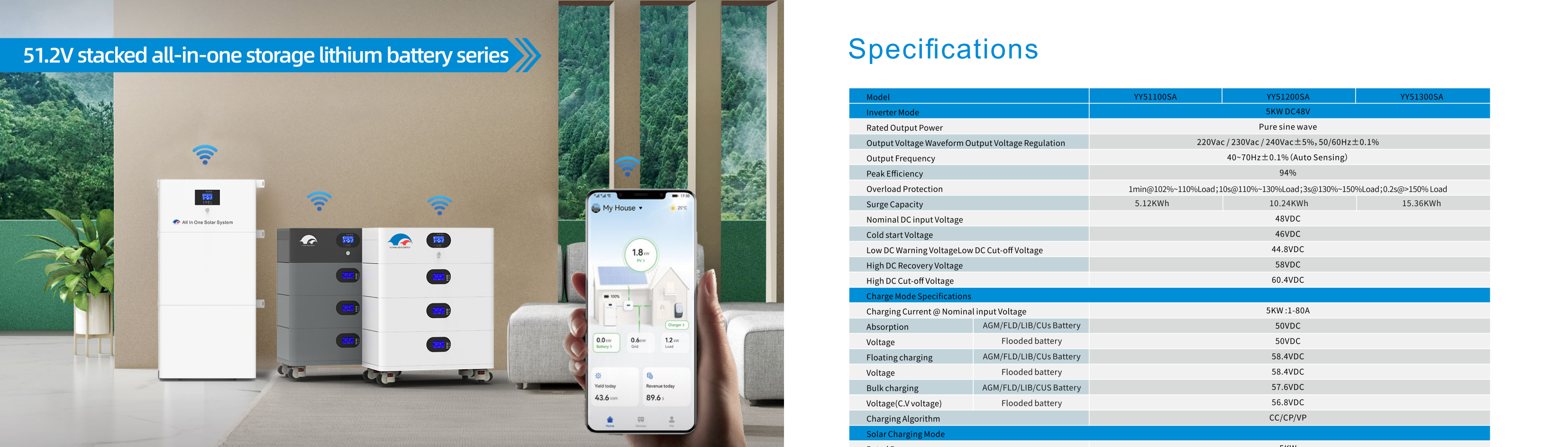

51.2V Stacked All-in-One Solar System — 5.12 / 10.24 / 15.36 kWh

2-in-1 design with built-in inverter + battery in stackable units. Smart load balancing for off-grid use. Minimal cabling for quick deployment. 5kW rated power with MPPT solar charging. 二合一设计，逆变器电池一体化，可堆叠。离网模式智能负载均衡。布线少，部署快。额定功率5kW，支持MPPT光伏充电。

5kW rated / 10kW peak AC output额定5kW / 峰值10kW交流输出
MPPT solar charging 60~80A, PV voltage 120~430VMPPT光伏充电60~80A，光伏电压120~430V
AC input 90~280V / 170~280V UPS mode交流输入90~280V / 170~280V UPS模式
WiFi remote monitoring, CAN/RS485/RS232WiFi远程监控，CAN/RS485/RS232
6000 cycles @80% DOD, 5-year warranty6000次循环@80% DOD，5年质保

Total Energy	Capacity	Nominal Voltage	Rated Power	Dimensions (mm)	Weight (kg)
5.12 kWh	100Ah×1	51.2V	5kW	740×430×195	65
10.24 kWh	100Ah×2	51.2V	5kW	1170×430×195	115
15.36 kWh	100Ah×3	51.2V	5kW	1600×430×195	165

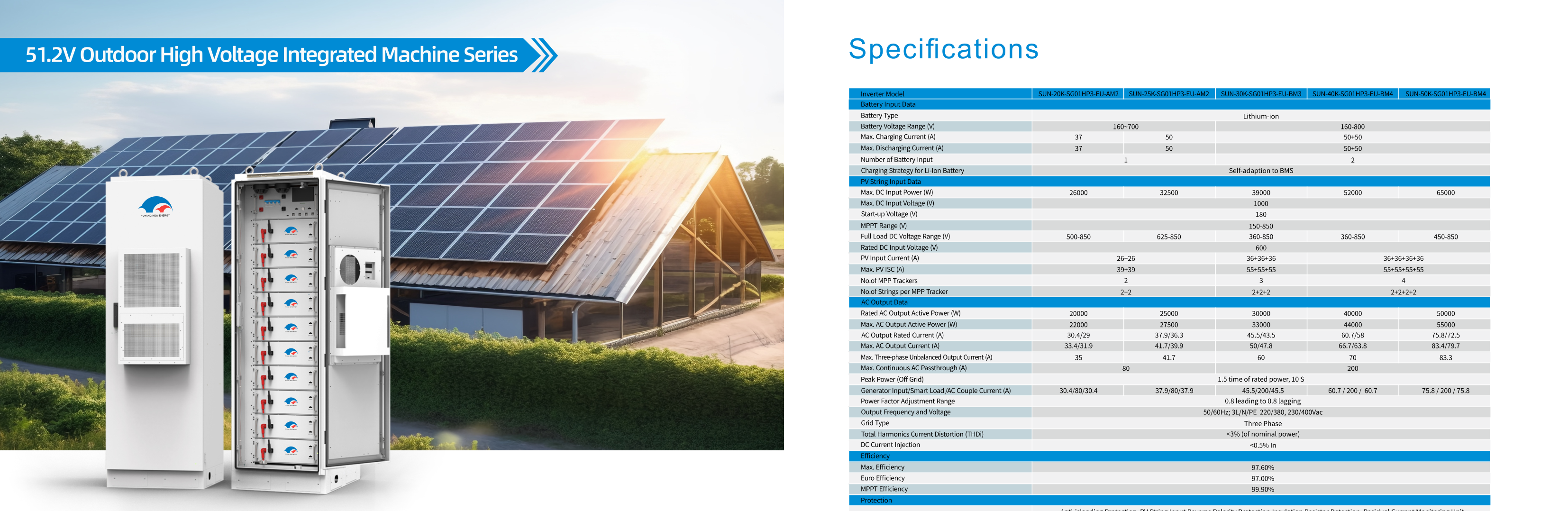

51.2V Outdoor High Voltage Integrated Machine51.2V 户外高压一体机

51.2 ~ 153.6 kWh, 19-inch rack standard, IP65 outdoor rated51.2 ~ 153.6 kWh，19英寸机架标准，IP65户外防护

Outdoor HV ESS

51.2V Outdoor High Voltage Integrated Machine — 51.2 / 102.4 / 153.6 kWh

Industrial-grade integrated system with 20kW~50kW inverter capacity. Supports high-voltage DC output (160~700V) reducing transmission loss by 5~10%. 19-inch rack standard for data centers or commercial use. IP65 outdoor rated with smart cooling. 工业级一体化系统，20kW~50kW逆变器容量。支持高压直流输出（160~700V），传输损耗降低5~10%。19英寸机架标准，适用于数据中心或商业用途。IP65户外防护，智能风冷。

Rated AC output: 20~50 kW, three-phase额定交流输出：20~50 kW，三相
Max DC input: 26~65 kW, PV voltage 150~850V MPPT最大直流输入：26~65 kW，光伏电压150~850V MPPT
Max efficiency 97.6%, IP65 protection最高效率97.6%，IP65防护
CAN communication with BMS, smart cooling与BMS的CAN通讯，智能冷却
6000+ cycles, 5-year warranty (10-year optional)6000+次循环，5年质保（可延长至10年）

Total Energy	Capacity	Nominal Voltage	Rated AC Power	Cabinet Size (mm)	Weight (kg)
51.2 kWh	100Ah	512V	20~30 kW	600×650×2100	530
102.4 kWh	200Ah	512V	30~40 kW	1170×430×195	1080
153.6 kWh	300Ah	512V	40~50 kW	1600×430×195	1650

Part 4第四部分

High Voltage Energy Storage Series 高压储能系列

High-voltage (384V~614V) LFP battery systems for residential and commercial applications. Multi-layer BMS protection, forced air cooling, and SNMP/Modbus for EMS integration. 高压（384V~614V）磷酸铁锂电池系统，适用于住宅及商业应用。多层BMS保护，强制风冷，支持SNMP/Modbus的EMS集成。

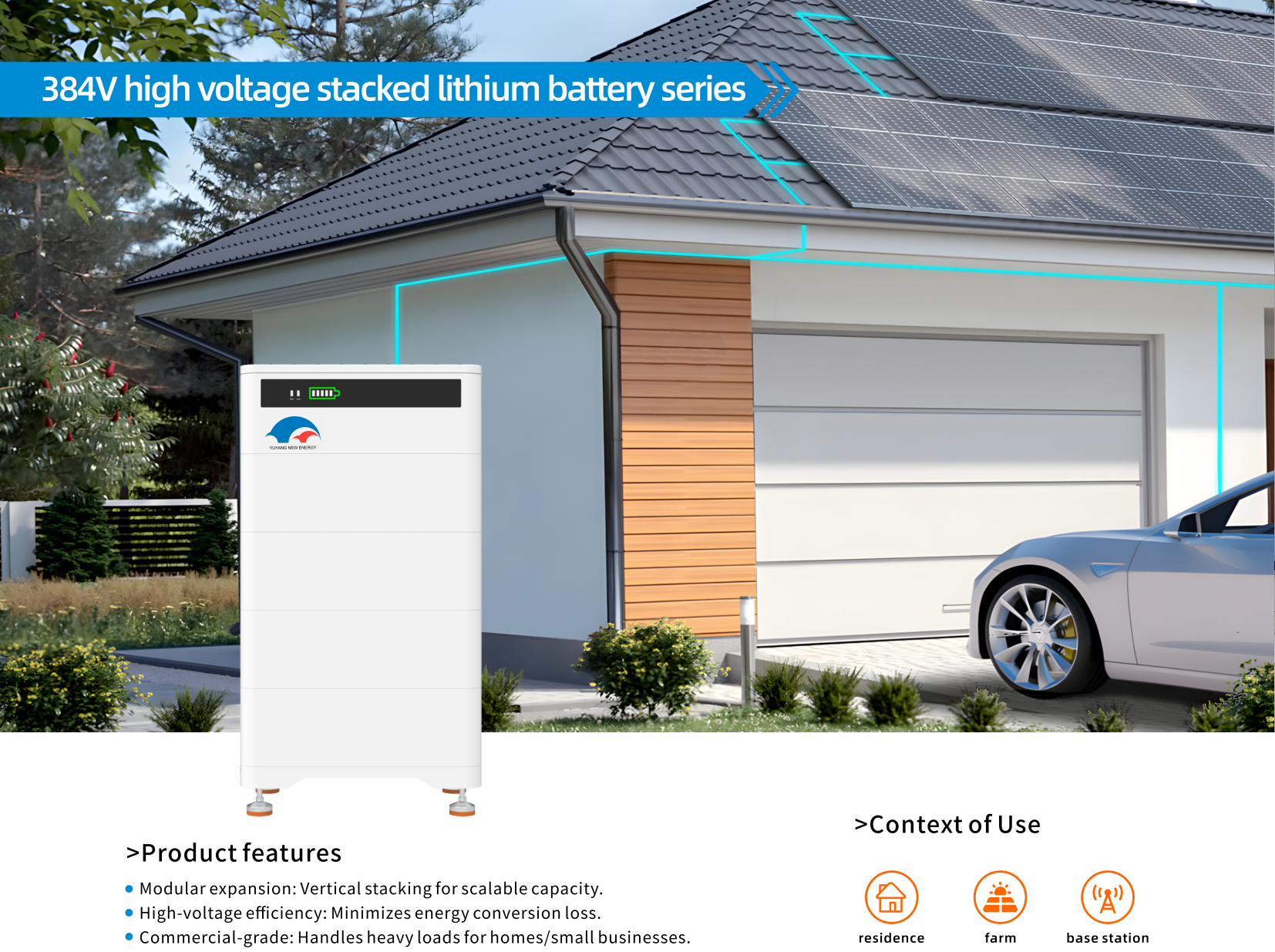

384V High Voltage Stacked & Wall Mounted384V 高压堆叠及壁挂式

10.368 kWh, modular stacking or wall-mounted10.368 kWh，模块化堆叠或壁挂式

384V High Voltage

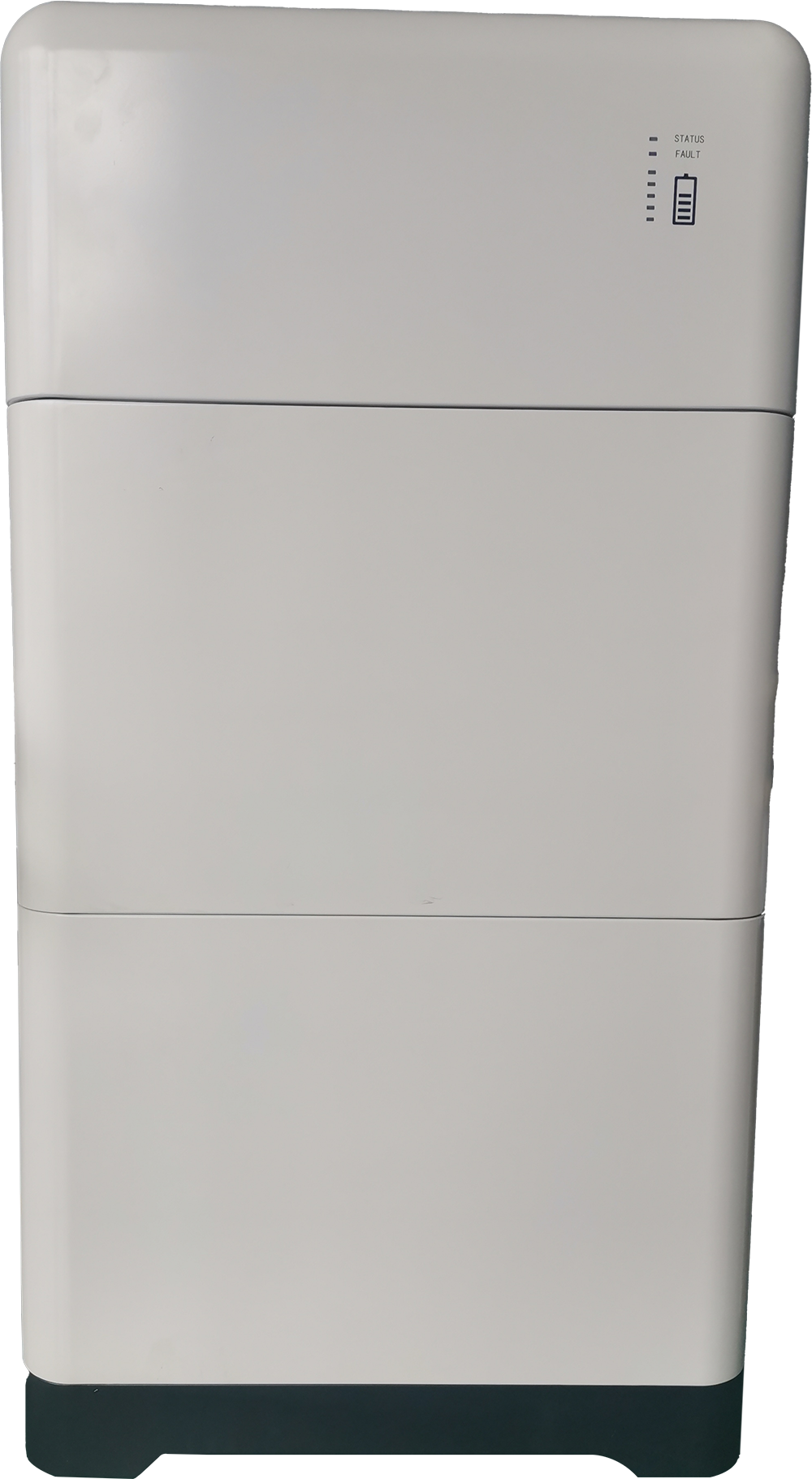

384V High Voltage Battery — YY38427HVS (Stacked) / YY38427HVW (Wall Mounted)

High-voltage efficiency minimizes energy conversion loss. Commercial-grade handling for homes and small businesses. Multi-layer protection for high-voltage operation. Available in stacked tower or wall-mounted form factors. 高压效率最小化能量转换损耗。适用于家庭和小型企业的商用级性能。高压操作多层保护。提供堆叠塔式或壁挂式两种外形。

Model	Energy (kWh)	Nominal Voltage	Capacity (Ah)	Dimensions (mm)	Weight (kg)
YY38427HVS (Stacked)	10.368	384V	27Ah	560×350×975	158
YY38427HVW (Wall Mounted)	10.368	384V	27Ah	520×230×1060	155

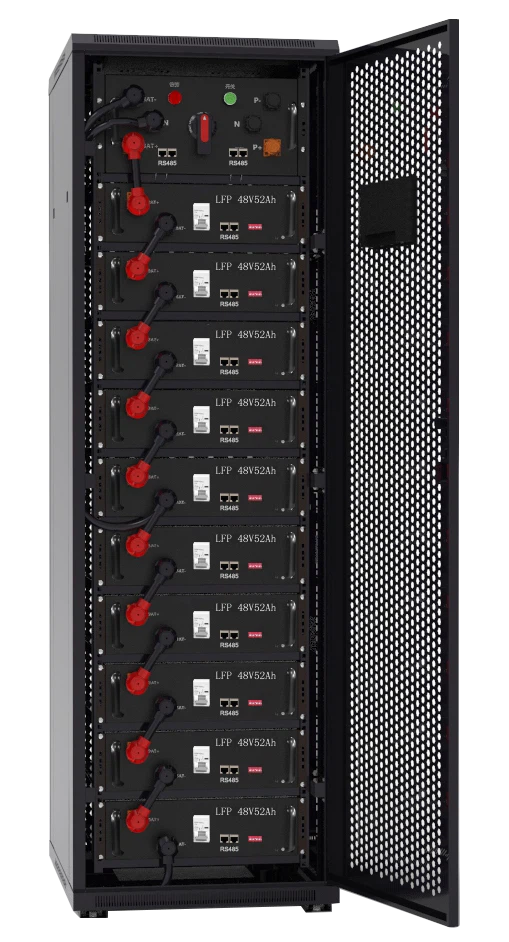

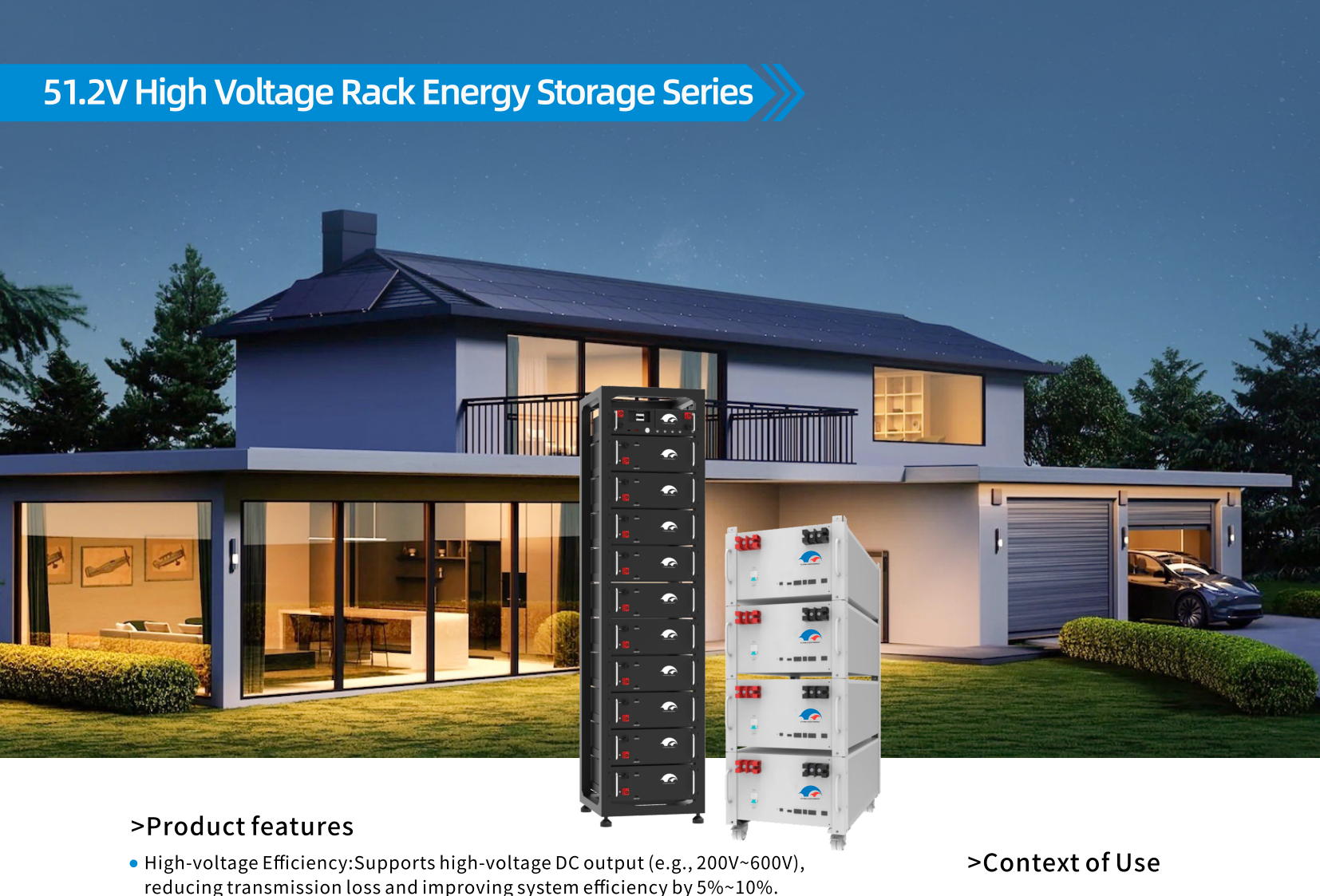

High Voltage Rack Series — 100Ah Platform高压机架系列 — 100Ah平台

358V~614V, 35.84~61.44 kWh358V~614V，35.84~61.44 kWh

HV Rack 100Ah

High Voltage Rack Series 100Ah — YY358100HVR ~ YY614100HVR

19-inch rack standard with scalable parallel connection for data centers and commercial use. High power density delivers 35~61 kWh per rack. Multi-layer BMS with forced air cooling for high-voltage stability. 19英寸机架标准，可并联扩展，适用于数据中心和商业用途。单机柜35~61 kWh高功率密度。多层BMS加强制风冷，确保高压稳定性。

Model	Energy (kWh)	Nominal Voltage	Capacity (Ah)	Dimensions (mm)	Weight (kg)
YY358100HVR	35.84	358.4V	100	600×650×1880	356
YY410100HVR	40.96	409.6V	100	600×650×1880	409
YY512100HVR	51.2	512V	100	600×650×2100	515
YY614100HVR	61.44	614.4V	100	2×(600×650×1880)	621

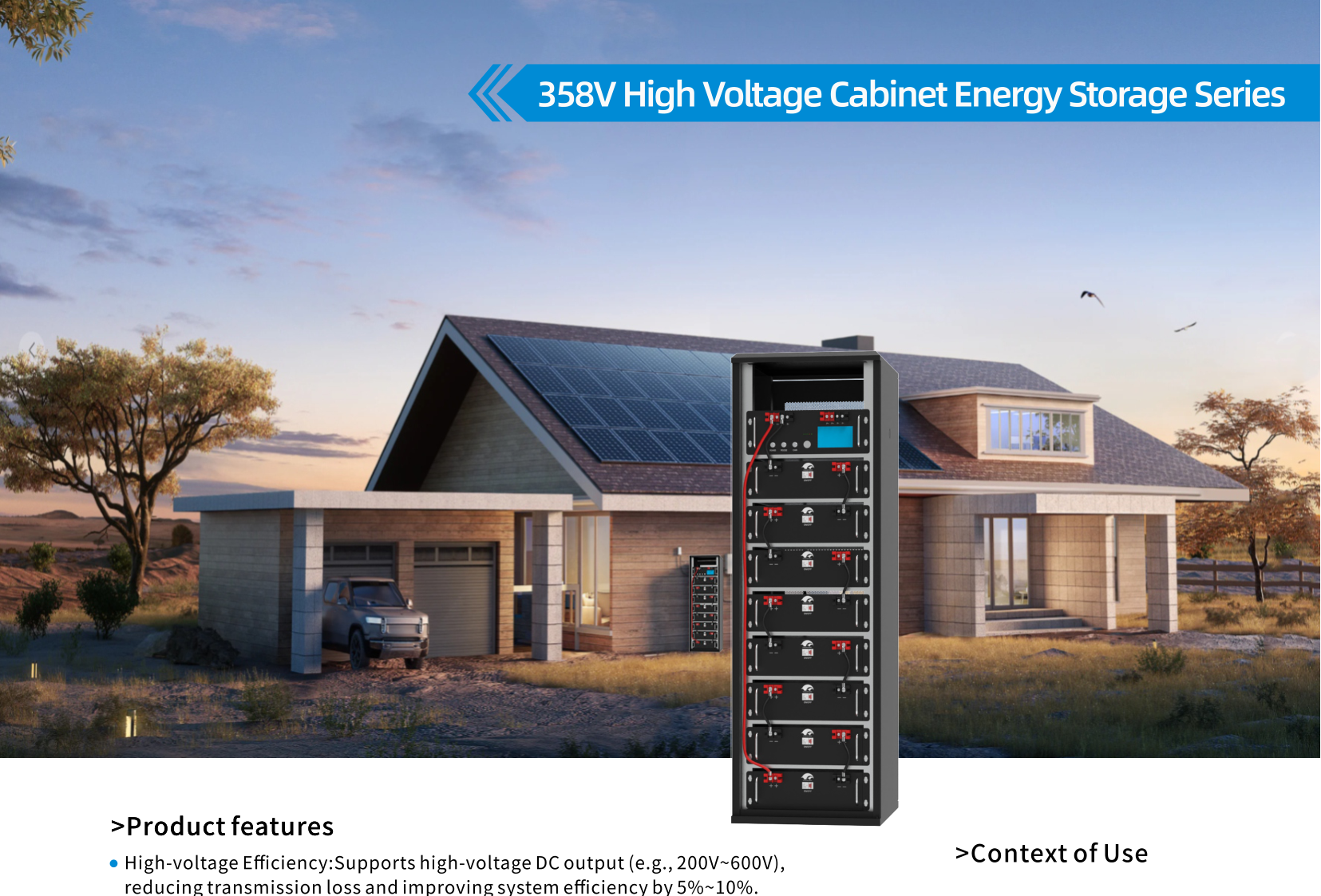

High Voltage Rack Series — 280~320Ah Platform高压机架系列 — 280~320Ah平台

100.24~196.48 kWh, high capacity configurations100.24~196.48 kWh，大容量配置

HV Rack 280~320Ah

High Voltage Rack Series 280~320Ah — 358V / 410V / 512V / 614V

High-capacity rack batteries for large-scale commercial and industrial energy storage. Scalable up to 6 units in parallel. Enterprise-grade EMS integration via SNMP/Modbus. 大容量机架电池，适用于大型商业和工业储能。最多6台并联。通过SNMP/Modbus实现企业级EMS集成。

Model	Energy (kWh)	Voltage (V)	Capacity (Ah)	Dimensions (mm)	Weight (kg)
YY358280HVR	100.24	358.4	280	1996.5×1200×660	920
YY358300HVR	107.4	358.4	300	1996.5×1200×660	1070
YY358320HVR	114.56	358.4	320	1996.5×1200×710	1310
YY410280HVR	114.8	409.6	280	1996.5×1200×660	990
YY410300HVR	123	409.6	300	1996.5×1200×660	1140
YY410320HVR	131.2	409.6	320	1996.5×1200×710	1380
YY512280HVR	143.36	512	280	1996.5×1200×930	1180
YY512300HVR	153.6	512	300	1996.5×1200×930	1330
YY512320HVR	163.84	512	320	1996.5×1200×980	1570
YY614280HVR	171.92	614.4	280	1996.5×1200×1200	1325
YY614300HVR	184.2	614.4	300	1996.5×1200×1200	1520
YY614320HVR	196.48	614.4	320	1996.5×1200×1468	1760

Part 5第五部分

LiFePO4 Plastic Case Battery Series 磷酸铁锂塑壳电池系列

Lightweight, portable LiFePO4 batteries in durable plastic enclosures. Enhanced energy density, faster charging, reduced weight, and lower environmental impact. IP65 rated for indoor and outdoor use. 轻量便携的磷酸铁锂电池，采用耐用塑壳封装。能量密度更高，充电更快，重量更轻，环境影响更小。IP65防护等级，适用于室内外。

12.8V Plastic Case

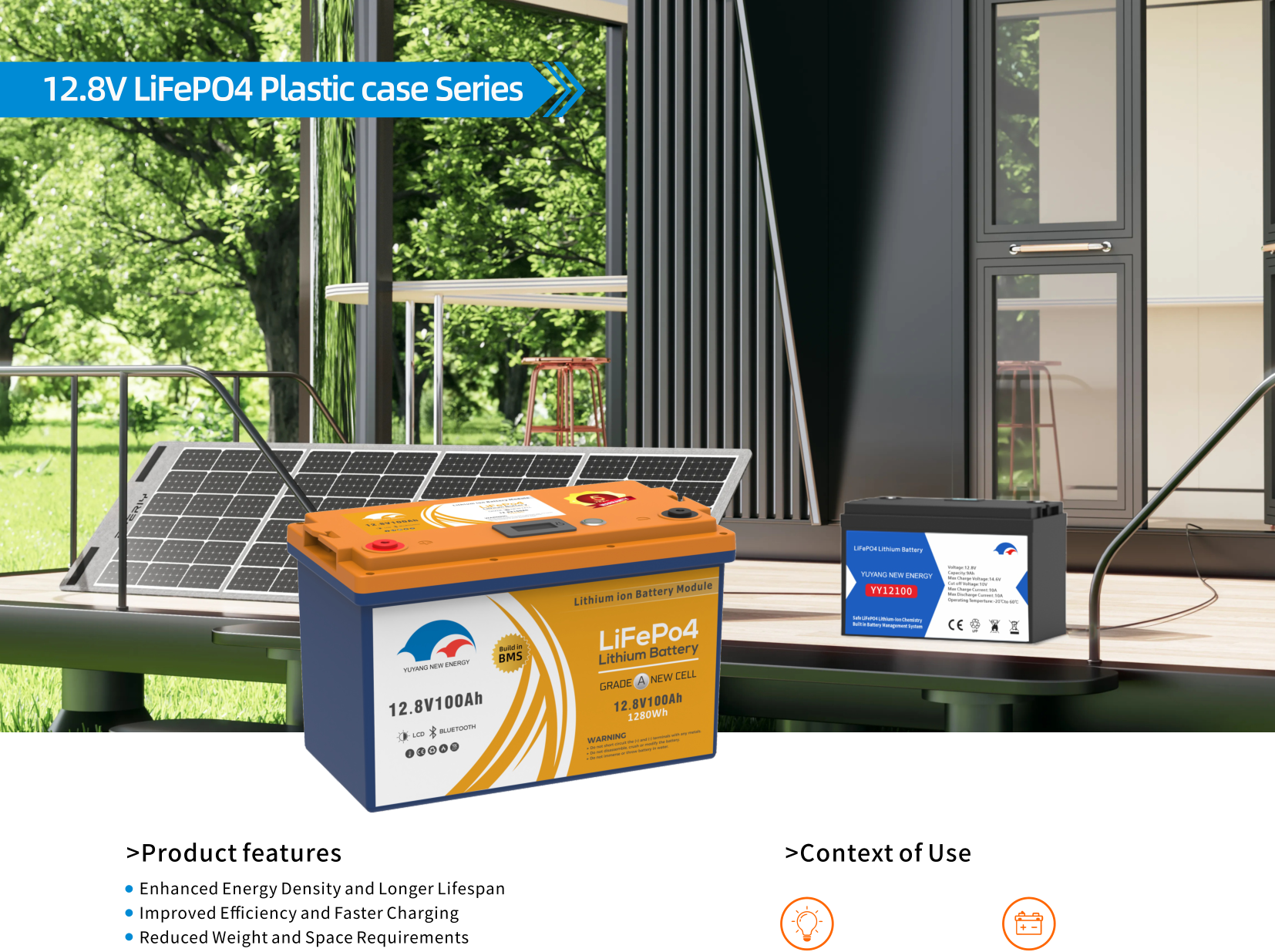

12.8V LiFePO4 Plastic Case — YY12100S ~ YY12460S

Drop-in replacement for lead-acid batteries. 1.28~5.888 kWh capacity. Ideal for household appliances, outdoor backup power, and portable energy needs. IP65 waterproof and dust resistant. 铅酸电池直接替代品。1.28~5.888 kWh容量。适用于家用电器、户外备用电源和便携式能源需求。IP65防水防尘。

Model	Energy (kWh)	Capacity (Ah)	Nominal Voltage	Weight (kg)	Dimensions (mm)
YY12100S	1.28	100	12.8V	11	339×185×218
YY12150S	1.92	150	12.8V	15.5	502×185×242
YY12200S	2.56	200	12.8V	19.5	502×185×242
YY12230S	2.944	230	12.8V	23.8	502×185×242
YY12300S	3.84	300	12.8V	28.1	522×185×242
YY12460S	5.888	460	12.8V	39.2	640×245×220

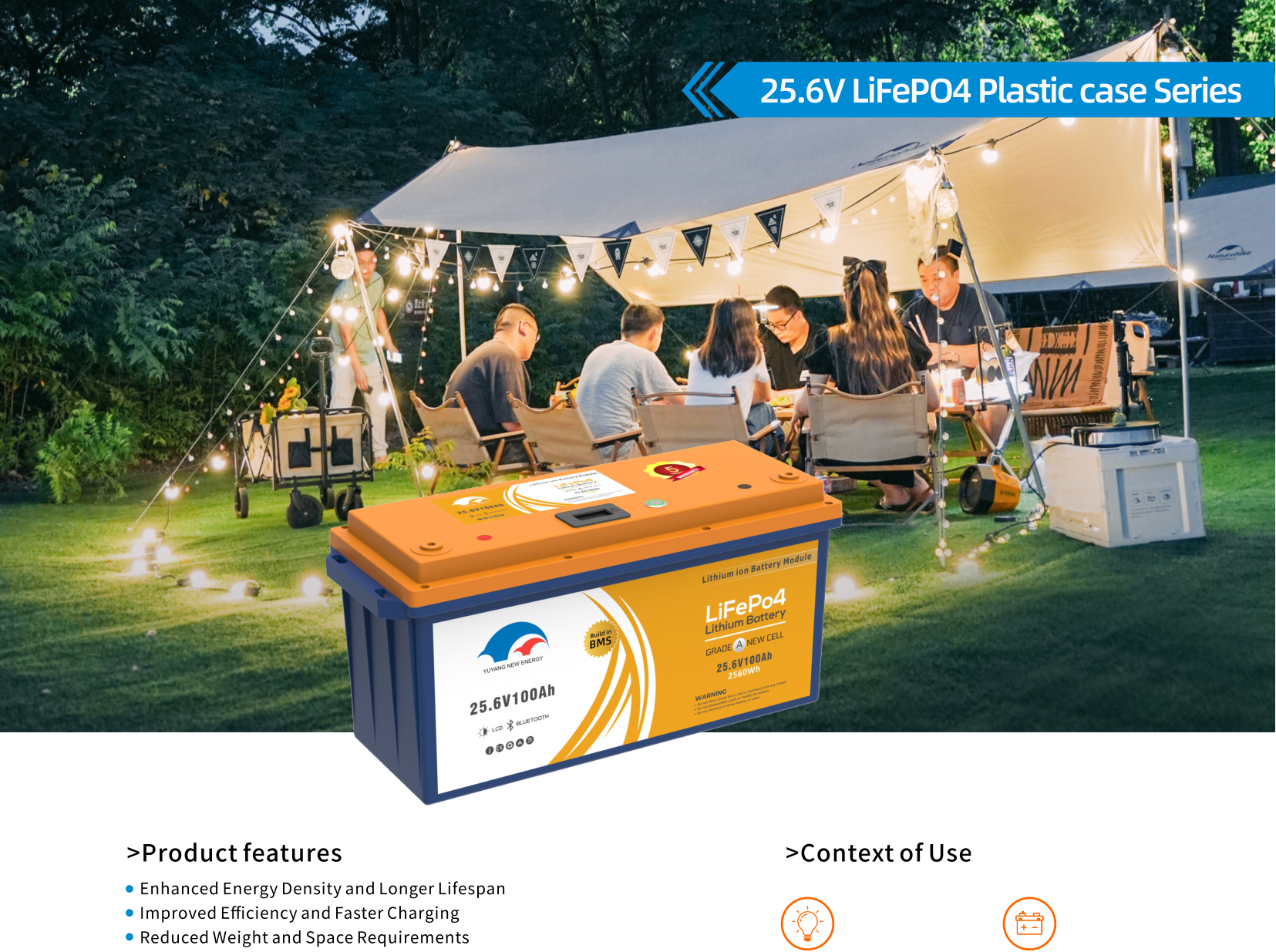

25.6V Plastic Case

25.6V LiFePO4 Plastic Case — YY25100S ~ YY25460S

Higher voltage plastic case battery for more demanding applications. 2.56~11.776 kWh with the same IP65 protection and Grade A LFP cells. Built-in BMS for comprehensive protection. 更高电压的塑壳电池，满足更高要求的应用。2.56~11.776 kWh，同等级IP65防护和A级LFP电芯。内置BMS，全面保护。

Model	Energy (kWh)	Capacity (Ah)	Nominal Voltage	Weight (kg)	Dimensions (mm)
YY25100S	2.56	100	25.6V	11.5	330×170×215
YY25150S	3.84	150	25.6V	31.4	523×229×218
YY25200S	5.12	200	25.6V	37.9	523×229×218
YY25230S	5.888	230	25.6V	40	523×229×218
YY25300S	7.68	300	25.6V	46.2	640×245×220
YY25460S	11.776	460	25.6V	59.5	670×250×220

Part 6第六部分

Power Battery & Street Lamp Series 动力电池及路灯系列

Specialized LiFePO4 batteries for electric vehicles and solar street lighting. High operational reliability, optimal battery management, and 10+ year design life at 25°C. 适用于电动车辆和太阳能路灯照明的专用磷酸铁锂电池。高运行可靠性，优化电池管理，25°C环境下10年以上设计寿命。

Power Battery

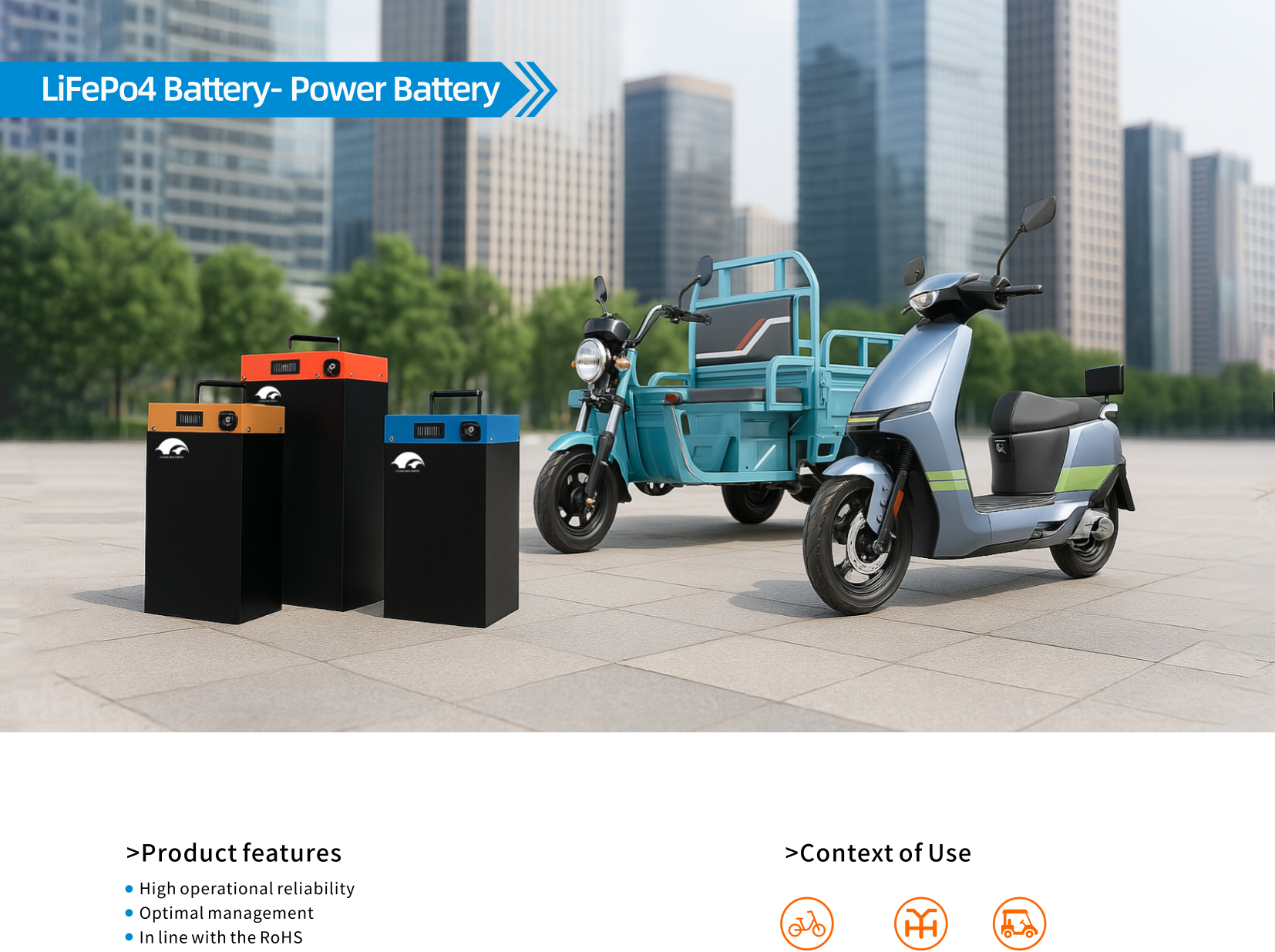

LiFePO4 Power Battery — YY51100P / YY60100P / YY73100P

High-power LFP batteries for electric two-wheelers, tricycles, and golf carts. 100Ah capacity in 51.2V, 60.8V, and 73.6V configurations. Electronic circuit breaker with BMS voltage and current protection. 大功率磷酸铁锂电池，适用于电动两轮车、三轮车和高尔夫球车。100Ah容量，提供51.2V、60.8V和73.6V配置。电子断路器，带BMS电压电流保护。

Model	Voltage (V)	Capacity (Ah)	Energy (kWh)	Cycle Life	Protection
YY51100P	51.2	100	5.12	3000 cycles @80% DOD	IP65, BMS
YY60100P	60.8	100	6.08	3000 cycles @80% DOD	IP65, BMS
YY73100P	73.6	100	7.36	3000 cycles @80% DOD	IP65, BMS

Street Lamp

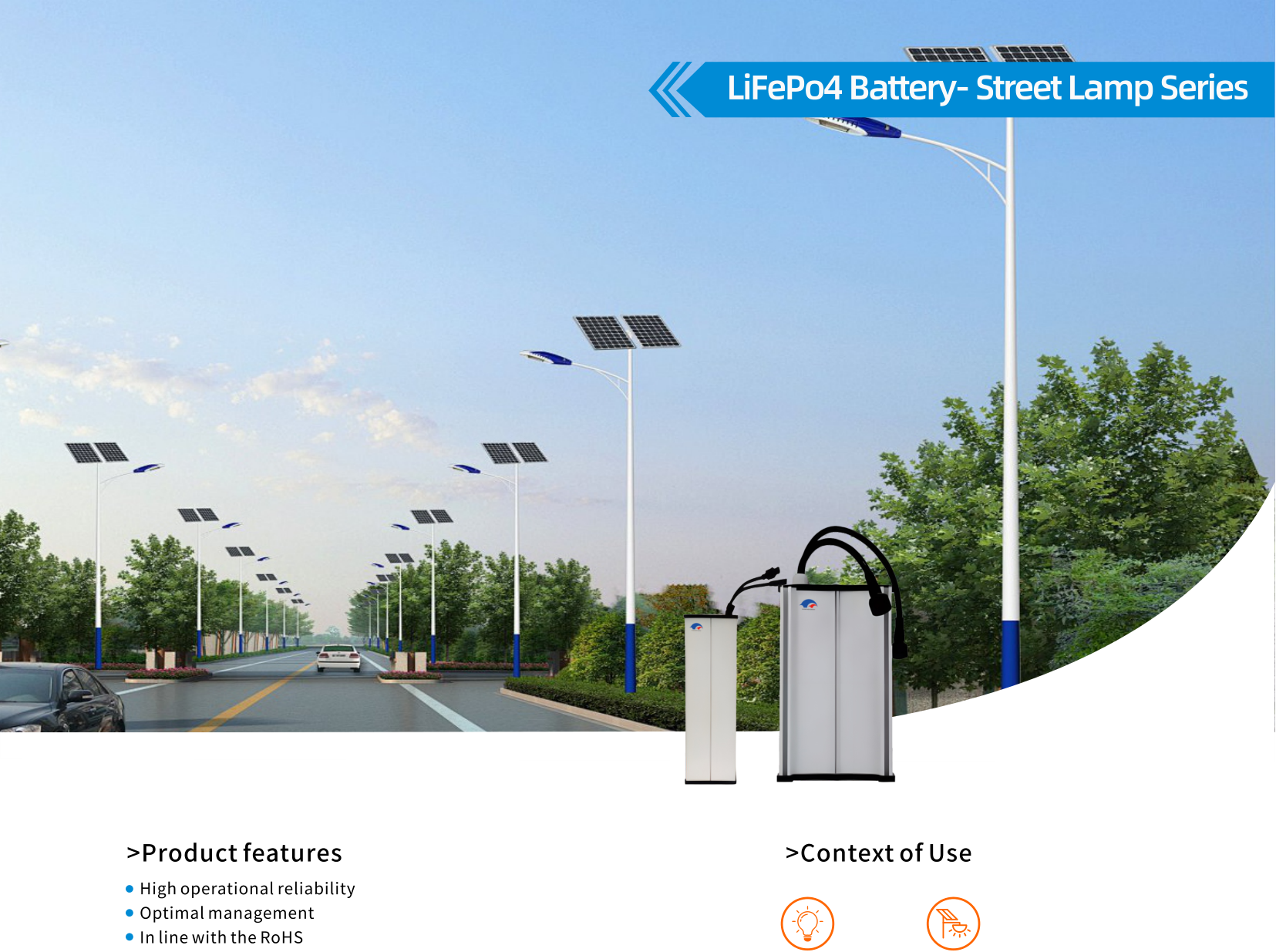

LiFePO4 Street Lamp Battery — YY1210SL ~ YY12200SL

Integrated LiFePO4 battery with MPPT charge controller for solar street lighting. 12.8V platform from 10Ah to 200Ah. Built-in MPPT controller manages optimal solar charging. Ideal for home and urban lighting. 带MPPT充电控制器的一体化磷酸铁锂电池，用于太阳能路灯照明。12.8V平台，10Ah至200Ah。内置MPPT控制器管理最佳太阳能充电。适用于家庭和城市照明。

Model	Voltage (V)	Capacity (Ah)	Energy (kWh)	MPPT (A)	Charge Current (A)
YY1210SL	12.8	10	0.128	12V-5A	2
YY1230SL	12.8	30	0.384	12V-5A	6
YY1250SL	12.8	50	0.64	12V-5A	10
YY12100SL	12.8	100	1.28	12V-10A	20
YY12120SL	12.8	120	1.536	12V-15A	24
YY12200SL	12.8	200	2.56	12V-20A	40

Applications应用场景

Application Scenarios 应用场景

Yuyang New Energy's LiFePO4 batteries are designed for a wide range of residential, commercial, and industrial applications. 广东宇阳新能源的磷酸铁锂电池适用于广泛的住宅、商业和工业应用。

Residential Energy Storage家用储能

Farm & Remote Station农场及远程基站

Commercial & Industrial工商业储能

Outdoor & Street Lighting户外及路灯照明

Residential Energy Storage Product Catalog 户用储能产品目录

Wall-Mounted Lithium Battery Series 壁挂式锂电池系列

Floor Standing / Tower Lithium Battery Series 落地式/塔式锂电池系列

All-in-One & Hybrid Energy Storage Systems 一体式及混合储能系统

High Voltage Energy Storage Series 高压储能系列

LiFePO4 Plastic Case Battery Series 磷酸铁锂塑壳电池系列

Power Battery & Street Lamp Series 动力电池及路灯系列

Application Scenarios 应用场景

Ready to power your project? 准备好为您的项目提供动力了吗？

Residential Energy Storage Product Catalog 户用储能 产品目录

Wall-Mounted Lithium Battery Series 壁挂式锂电池系列

Floor Standing / Tower Lithium Battery Series 落地式/塔式锂电池系列

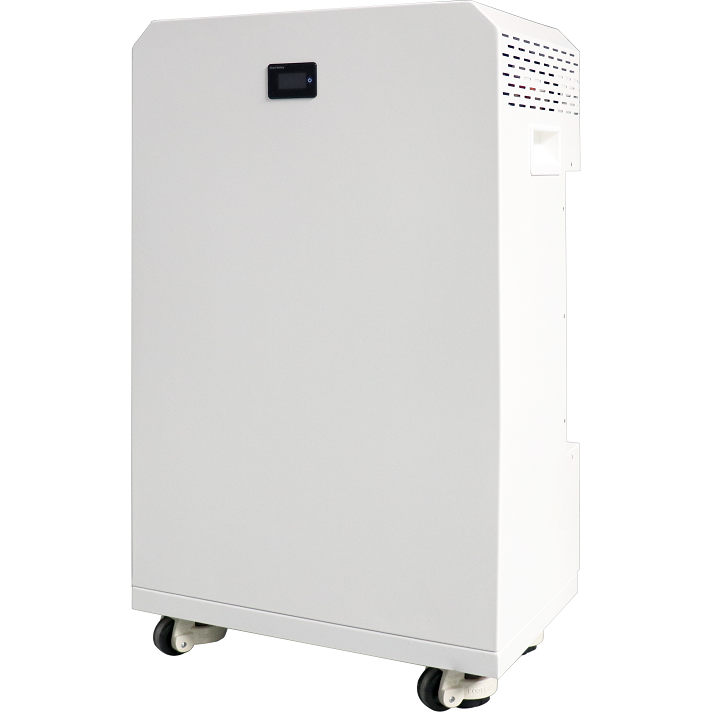

All-in-One & Hybrid Energy Storage Systems 一体式及混合储能系统

High Voltage Energy Storage Series 高压储能系列

LiFePO4 Plastic Case Battery Series 磷酸铁锂塑壳电池系列

Power Battery & Street Lamp Series 动力电池及路灯系列

Application Scenarios 应用场景

Ready to power your project? 准备好为您的项目提供动力了吗？

Residential Energy Storage Product Catalog 户用储能产品目录
